PLATFORM LIFT

Savaria Multilift

Description

Gain convenient, easy and reliable access with the Savaria Multilift vertical platform lift. The Multilift
easily accommodates a person with wheelchair with its 750 lb capacity. Built with durability in mind, the Multilift is up for the challenge of tough climate conditions.

You can count on this lift for reliable performance and ease of operation. An ideal deck lift for home use, the Multilift is also approved for certain public accessibility projects with the optional commercial package. The lift is available in standard beige, or choice of custom color, with landing and platform gates in solid metal or with glass or acrylic inserts.

Download Brochure

Product Feature

  • ACME screw drive with back-up nut provides reliable operation and 750 lb capacity
  • Self-supporting tower houses mechanical components, installs with securement to concrete pad
  • Constant pressure controls with keyed access on car and call stations
  • Non-skid zinc-coated platform available in 3 standard sizes with optional 36″ and 42″ widths. Note that 42″ platform requires additional support for tower
  • Automatic access ramp for easy on/of (16″ residential, 24″ commercial) and side guard panels (421/8″)
  • Safety features include underpan sensor to stop lift when it meets an obstruction, manual lowering device, emergency stop button, electro mechanical lock on landing gate
  • Options: grab rail, fxed access ramp, emergency light and alarm on car, weather resistant lock for outdoor use, 90-degree access, 36″ or 42″ wide platform, optional travel to 72″, custom color platform and landing gates with acrylic or glass inserts, battery back-up system for emergency use, joystick, pendant control, powered gate, fold-out seat
  • Optional Savaria Link system for trouble-shooting and lift technician diagnostics
  • The Multilift is also available with a factory-built enclosure or as a mobile unit

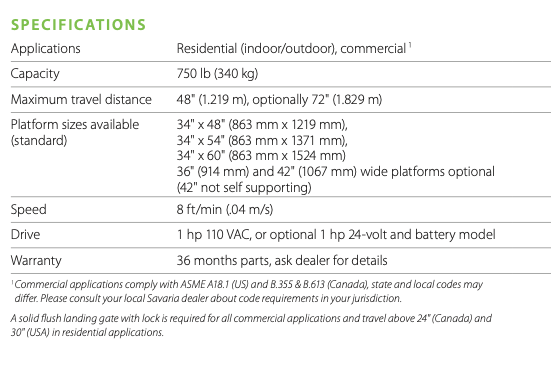

Technical Specifications
