RESIDENTIAL ELEVATOR
Savaria Telecab Home Lift
The Savaria Telecab was built on the same technology as the company’s popular V-1504 wheelchair platform lift and features a robust and reliable hydraulic drive system enclosed in a tower eliminating the need for a separate machine room. The enclosed cab with acrylic panels provides an elevator feel to this accessibility lift.
The Telecab is offered in two design styles and both include a non-skid platform with low threshold and gentle slope for easy wheelchair access. The platform is offered to a size of 36″ by 54″ for larger equipment access and the constant pressure operation features easy-to-use buttons including emergency stop. Emergency battery lowering and full safety sensor system to detect obstructions are included.
Product Feature
Two-stops and up to 23′ (7 m) of travel, residential indoor use only
Architectural white powder coated finish with acrylic panels
Constant pressure controls with keyed or keyless access
Full height flush door with optional automatic door operator
Interior ceiling lighting with handrail or grip handles
2:1 roller chain hydraulic drive system
Nominal speed of 20 ft/minute (0.10 mps)
Minimum overhead of 96″ (2438 mm), or 92″ (2337 mm) with variance
Cab height of 78″ (1981 mm) in Telecab, and 80″ (2032 mm) in Telecab17
24 VDC, 3 Hp (2.1 kW) motor with gear type hydraulic pump
Power supply required: 110 VAC, 30 A, 60 Hz, single phase (20 A if optional battery back-up is installed)
Additional safety features include: emergency stop and alarm buttons, emergency battery and manual lowering, telephone, underpan obstruction sensor, cab-top obstruction sensor, pressure relief valve to prevent platform overload, door interlock system, slack chain safety device
Optional battery power back up for up/down up to 5 trips
36 month parts warranty, see dealer for details

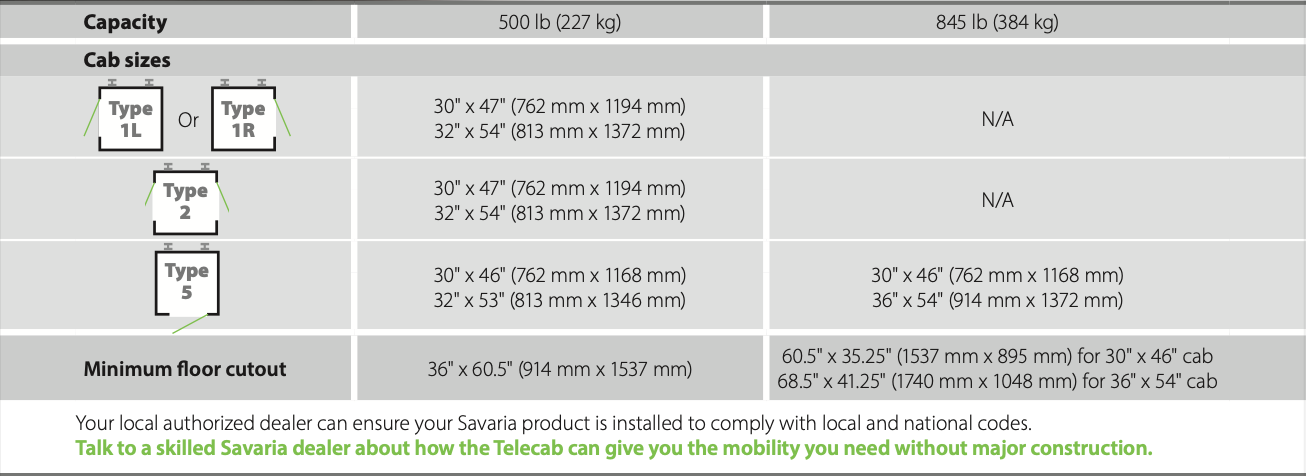

Technical Specifications
