PLATFORM LIFT
Savaria V-1504
Description
The Savaria V-1504 vertical platform lift is built to carry a wheelchair and passenger safely up and down one or more levels.
Suitable for installations in public and commercial buildings, as well as private homes, this Savaria lift features an extremely versatile design that can be configured and customized to suit virtually any project
requirements and aesthetic needs. From the rugged outdoors, to the most luxurious office tower lobbies, the Savaria V-1504 lift is ready to serve with its reliable performance, ease of use and range of finish options.
Product Feature
SMOOTH HYDRAULIC
2:1 CHAIN DRIVE SYSTEM
The lift provides a high efficiency, reliable and comfortable ride.
LARGE PLATFORM FOR EASY ACCESS
The standard platform is 36″ by 54″ (ADA compliant), and custom platform sizes are also available. The non-skid surface provides added safety.
FLEXIBLE DESIGN
Configure up to 23′ of travel distance* with up to four stops, with a full range of entrance and exit configurations available.
EXTENSIVE
FINISH OPTIONS
Choose standard beige powder coat, select from the optional color finishes, or even request your own
custom color. Enclose your lift with acrylic or glass panels.
EMERGENCY BACK-UP SYSTEMS
In addition to a manual lowering system, the lift features a DC battery powered lowering system for use in the event
of a power failure. Optionally, a battery back-up operating system can be added to allow full functionality of the lift for emergencies.
EASY OPERATION
On-board controls operate the lift easily with constant pressure. Optional call/send stations can be added with or without key
access. Add an optional joystick, 60 mm buttons, or additional operating panel to add even more flexibility for user needs.
MACHINE ROOMLESS
The Savaria V-1504 does not require
a machine room to house the drive component, simplifying the installation process. Alternatively, the drive system can be located in a remote machine room for ultra-quiet operation.
* consult your authorized Savaria dealer for complete specifications applicable to your local code requirements

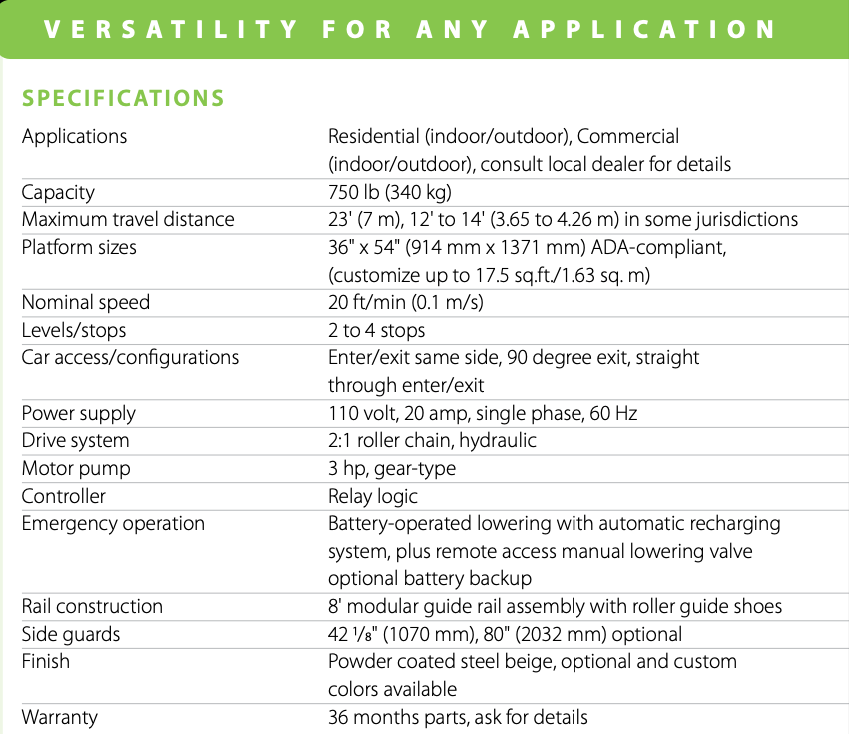

Technical Specifications
